Solar panels Mounting kit (Tile Roof)
Solar panels Mounting kit (Tile Roof)
Verfügbarkeit für Abholungen konnte nicht geladen werden
Suitable for tile roofs: This PV module holder set is suitable for tiled roofs. With the unique hook and rail design that allows the solar panel to be hung directly between the tiles without requiring any modification to the tiles.

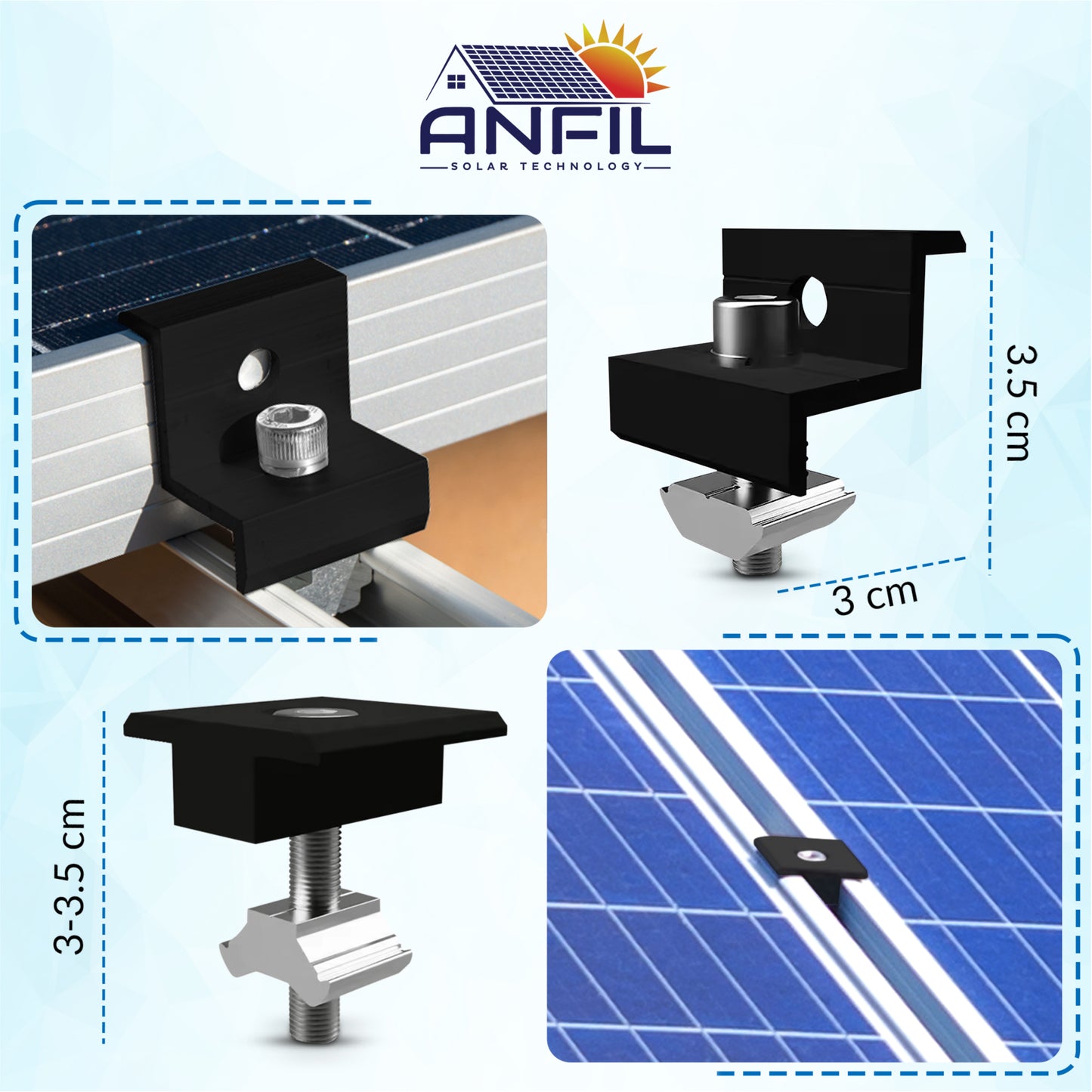

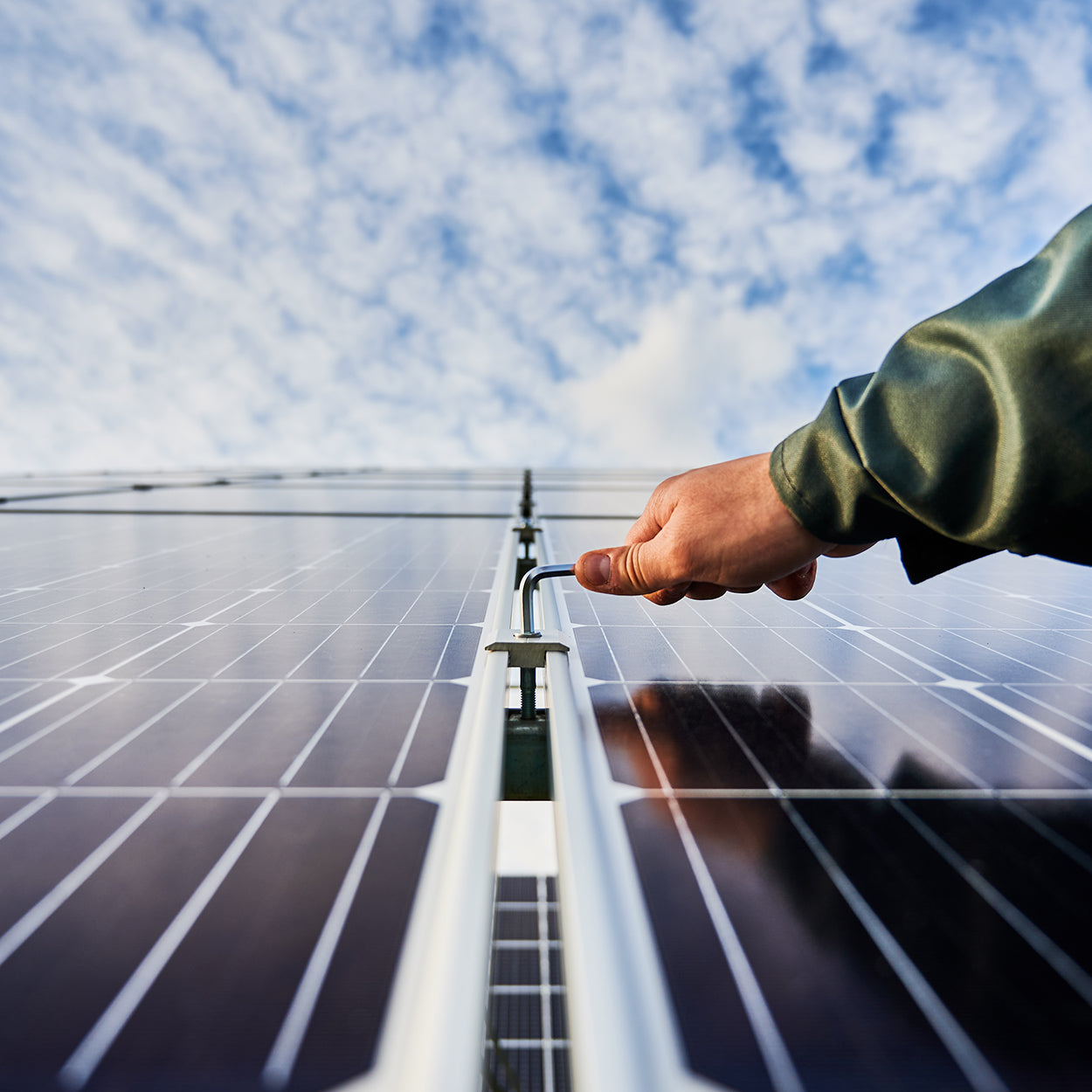

Improved Adjustable End Clamp: This solar end clamp can be suitable for solar panels with a thickness of 30-35mm, making installation more flexible. You can adjust it according to your needs to ensure the stability and use effect of the stand.

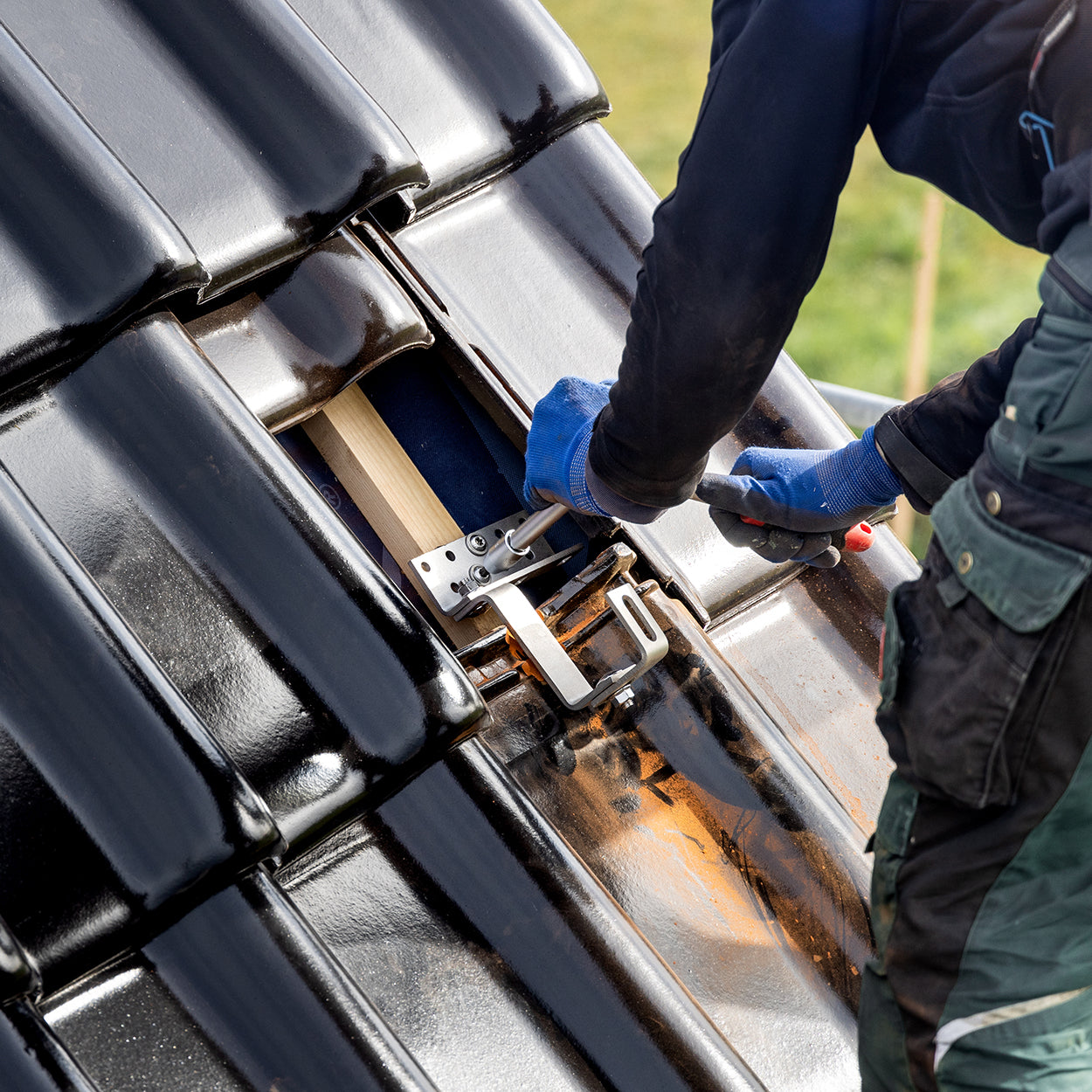

Easy to install: The installation of these solar brackets for roof tiles is very easy. Depending on the height of the crossbars, a spacer between the rafters and the roof hook is necessary for installing the roof hook wire. Alternatively, a replacement sheet metal tile can also be installed (not included in delivery). Easy and efficient installation reduces the installation costs for you.
High-quality aluminium material: The high-quality aluminium material AL6005-T5 used in the solar panel bracket tile roof set has a good corrosion resistance and a long service life, and can remain intact under long-term outdoor exposure.
High-quality customer support: our company is committed to providing customers with 24/7 online technical support and solutions to ensure customers get the best results when using our solar panel mounting kits.

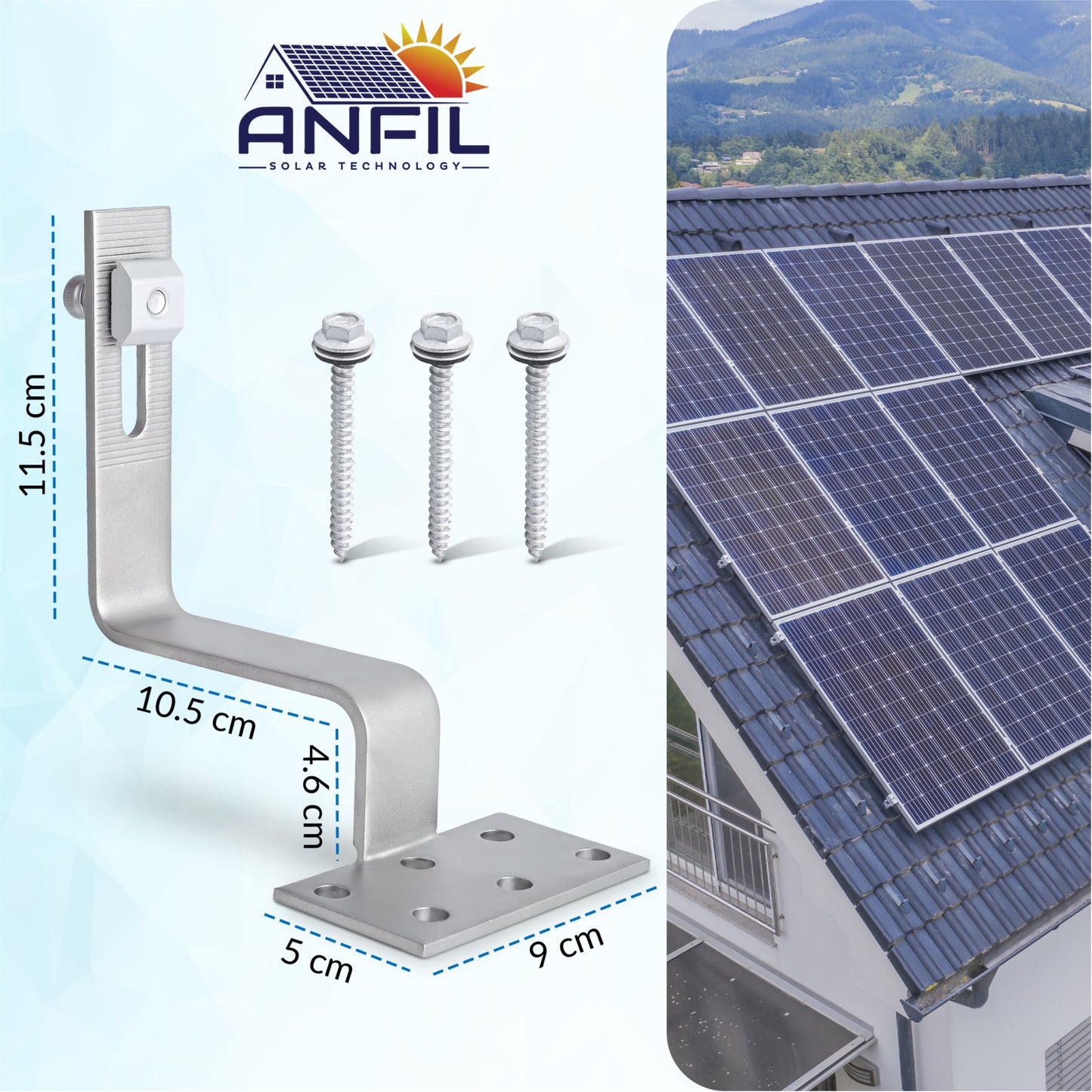

Unique hook design
You can safely install our hooks on the tile roofs or glazed tile roofs without damaging the roof tile structure (the ordinary mounting rails destroy tiled roofs).
High quality aluminium alloy
The solar panel bracket for the tile roof is made of high quality aluminium alloy AL6005-T5, which is strong, corrosion resistant and suitable for any harsh weather or environment.
Complete installation kit

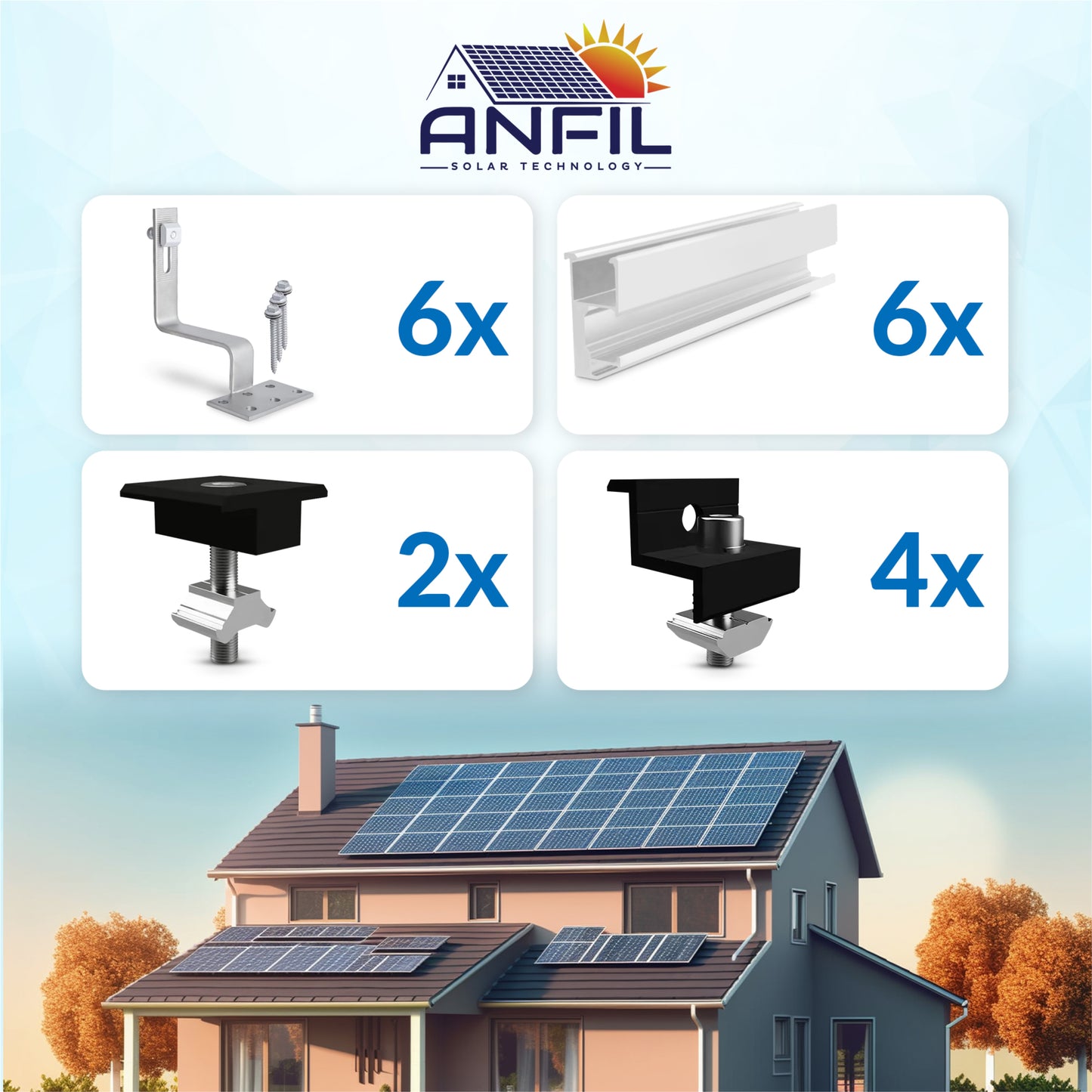

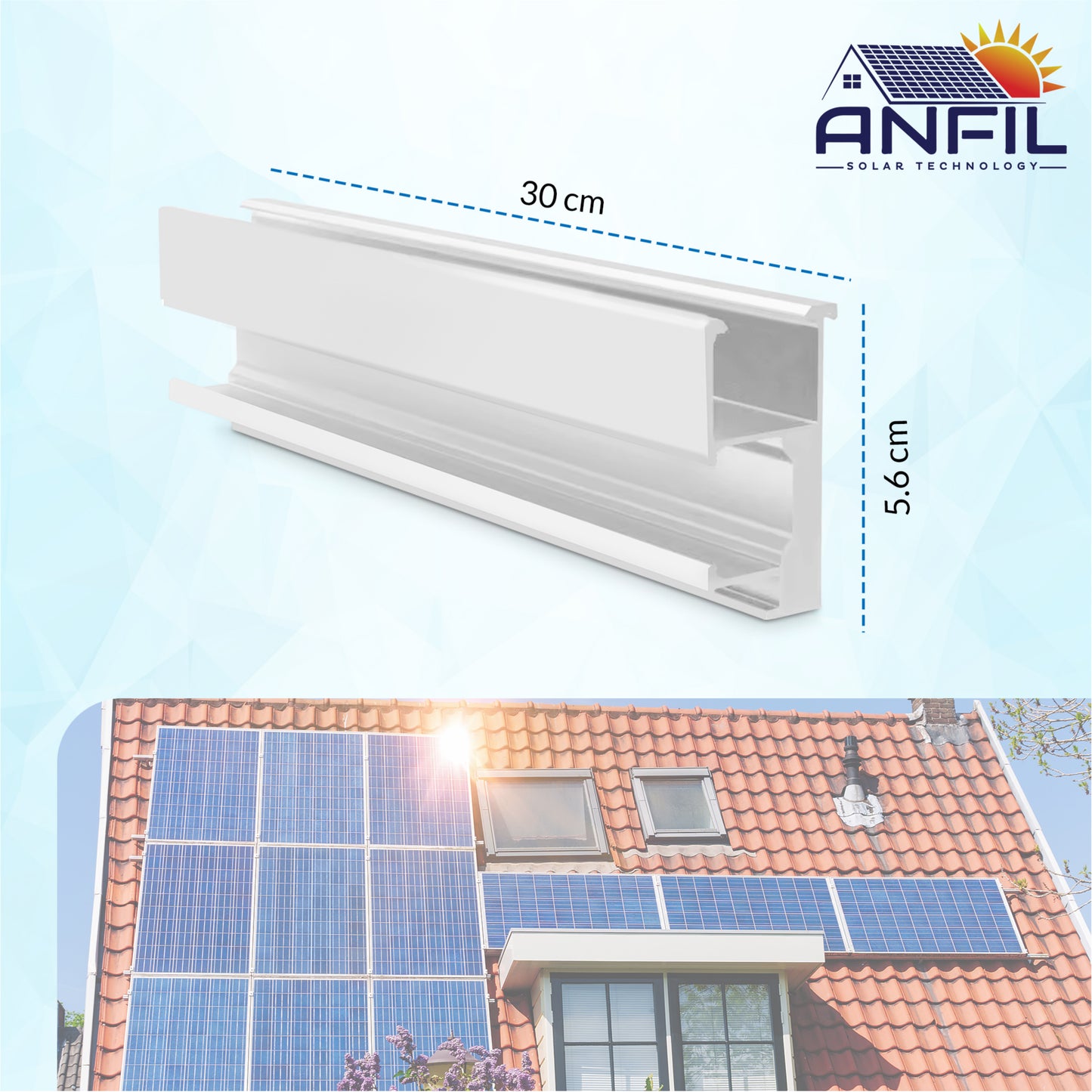

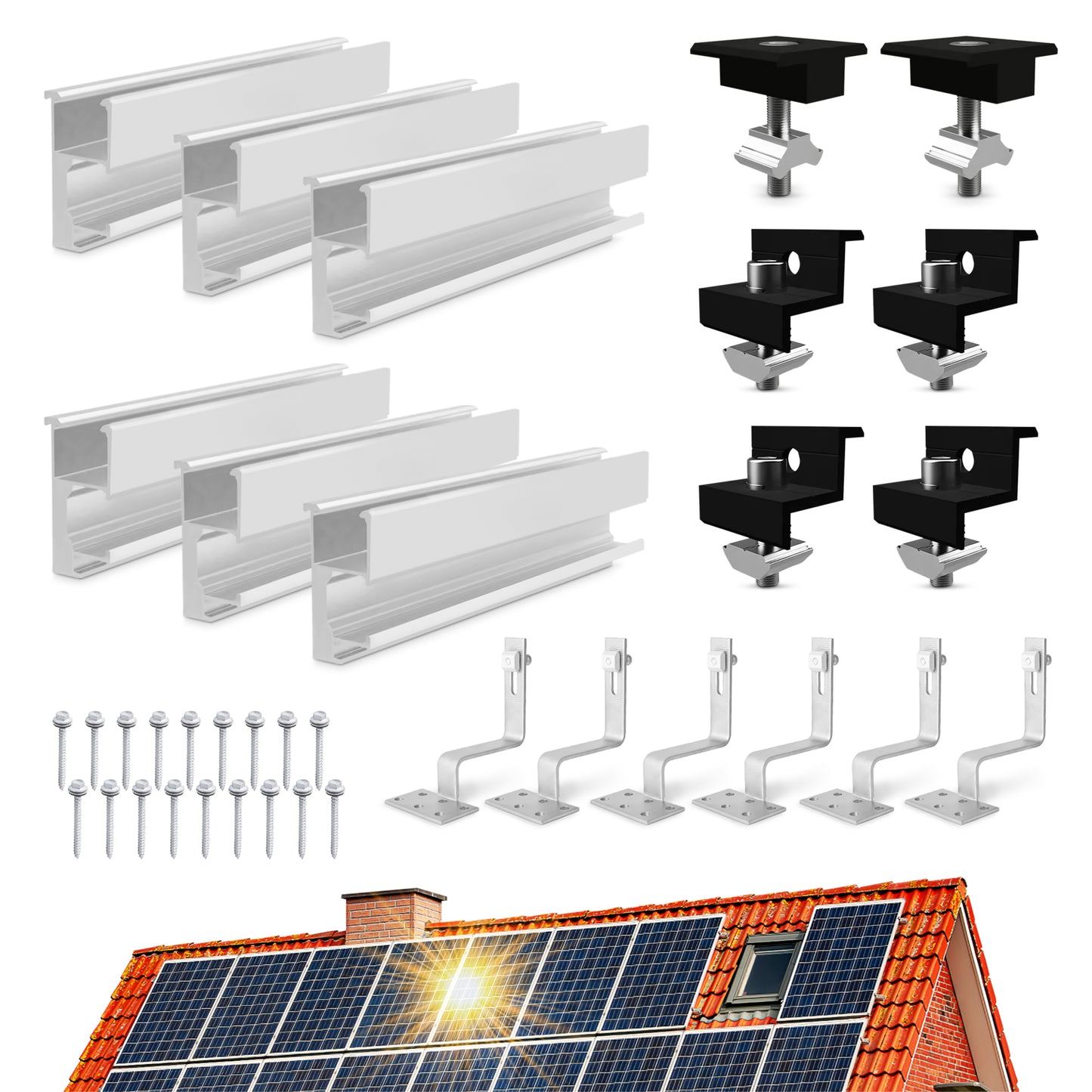

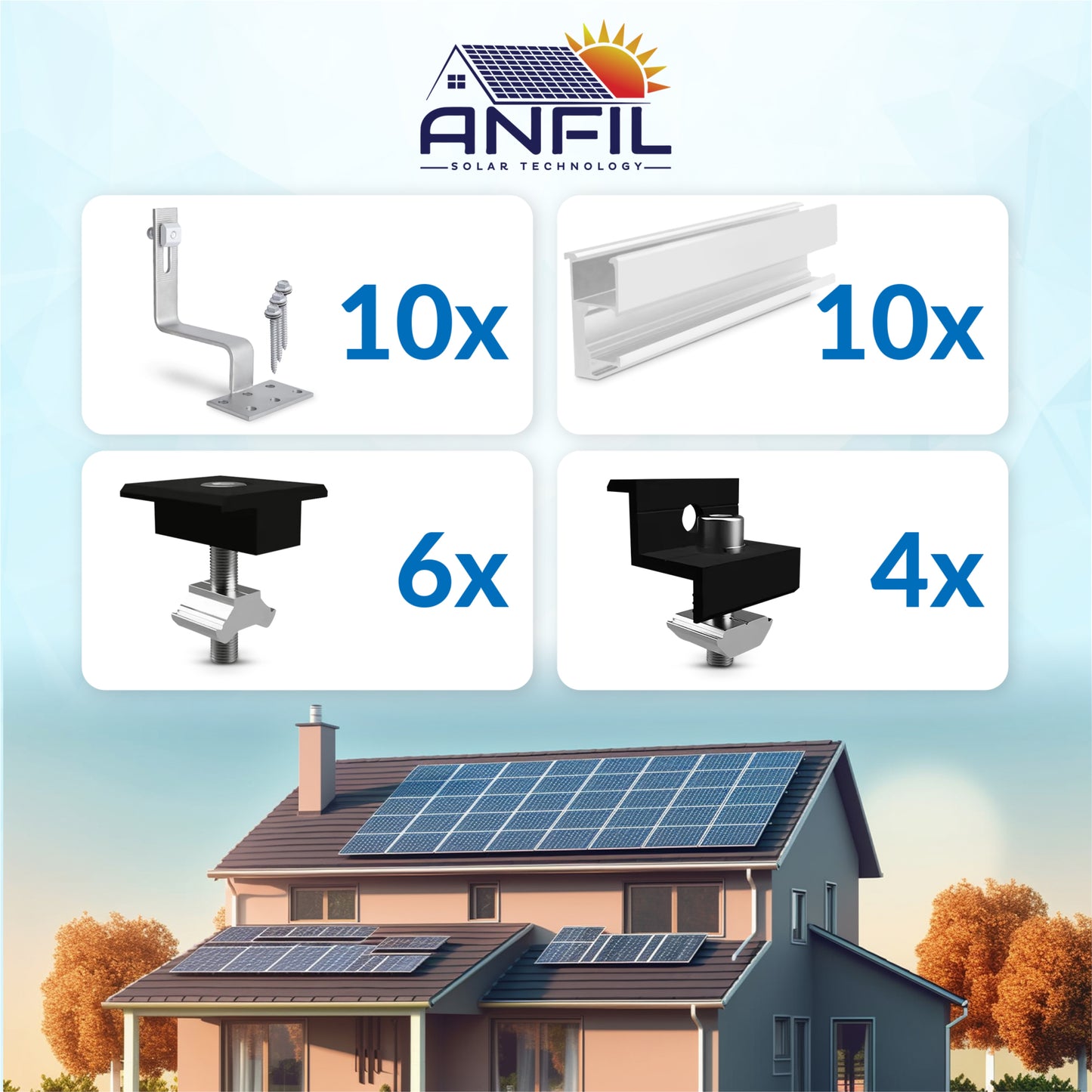

Our PV mounting set for the tile roof is equipped with guide rails + hooks + end clamps + intermediate clamps + screws. Depending on the number of solar modules to be mounted, you can choose the appropriate set and your installation process will be convenient and firm.
Spezifikation
Spezifikation
Kabelquerschnitt: 4 mm² (12 AWG)
Leiter des Kabels: Verzinnter Kupfer
Isolierung des Kabels: Doppelte XLPE
Nennspannung: DC 1,5 kV; AC 0,6-1 kV
Nennstrom: 10 ~ 50 A
Prüfspannung: 6 KV (50 Hz, 1 Min)
Flammklasse: UL94-V0
Nenntemperatur: -40°C~+85°C
Obere Temperaturgrenze: 100°C
Verschmutzungsgrad: 2
Schutzgrad: Klasse II
Standard: TUV, CE
Lebensdauer: 25 Jahre
