Brand: ANFIL Solar Technology

Color: Black

Details:

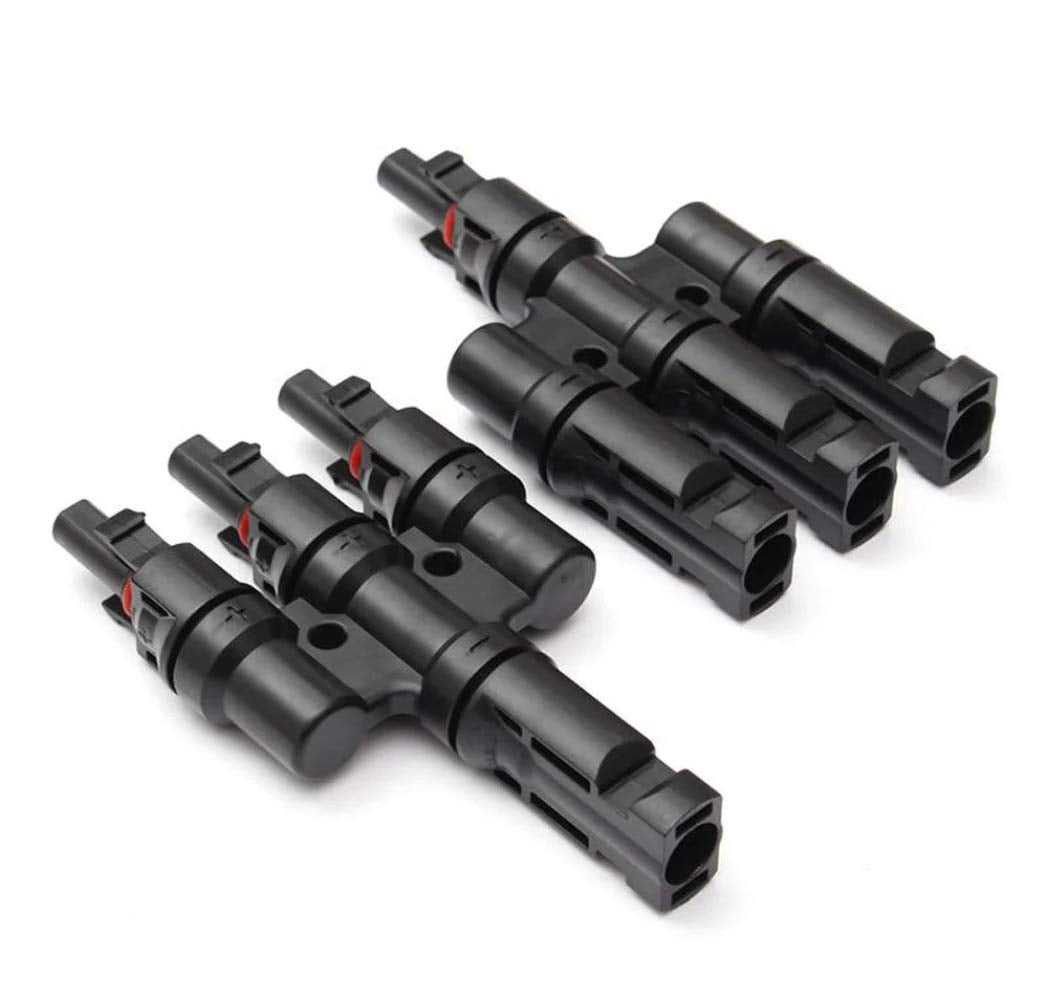

MC4 T-type Cable Connectors - 1 Male to 3 Female (M/3F) and 1 Female to 3 Male (F/3M)

Features:

  • Solar Panel MC4 T-type Branch Cable Connectors has special design for stronger connection of male and female connectors (the possibility of spontaneous disconnection is excluded)
  • The MC4 metal pins 100% use tinned copper, which provides high corrosion resistance and maximum conductivity at minimum contact resistance
  • Great solution for parallel connection of multiple panels together in a solar field
  • Compatible with all MC4 solar connectors, Easy to Install, Durable, Reusable, Dustproof, IP67 Waterproof
  • With excellent aging and UV resistance
  • Solar Panel MC4 T-type Branch Cable Connectors can be used for at least 25 years the same as solar cell modules. The product quality guaranteed for 10 years

 Specification:

Model: T-type connector 3 Female to 1 Male (3F/1M) + 1 Male to 3 Female (1M/3F)
Rated Voltage: 1000V
Rated impulse voltage: 8000V
Rated insulation voltage: 6000V
Rated Current: 30A
Protection Degree: IP67
Contact Resistance: ≤0.5mΩ
Pollution Degree: 2
Ambient Temperature Range: -40~+85℃
Suitable cable: 2.5/4/6.0 mm² (AWG 14/12/10)
Contact Material: Copper, Tin Plated
Insulation Material: PPO

Flame Class: UL94-V0

Package Include:

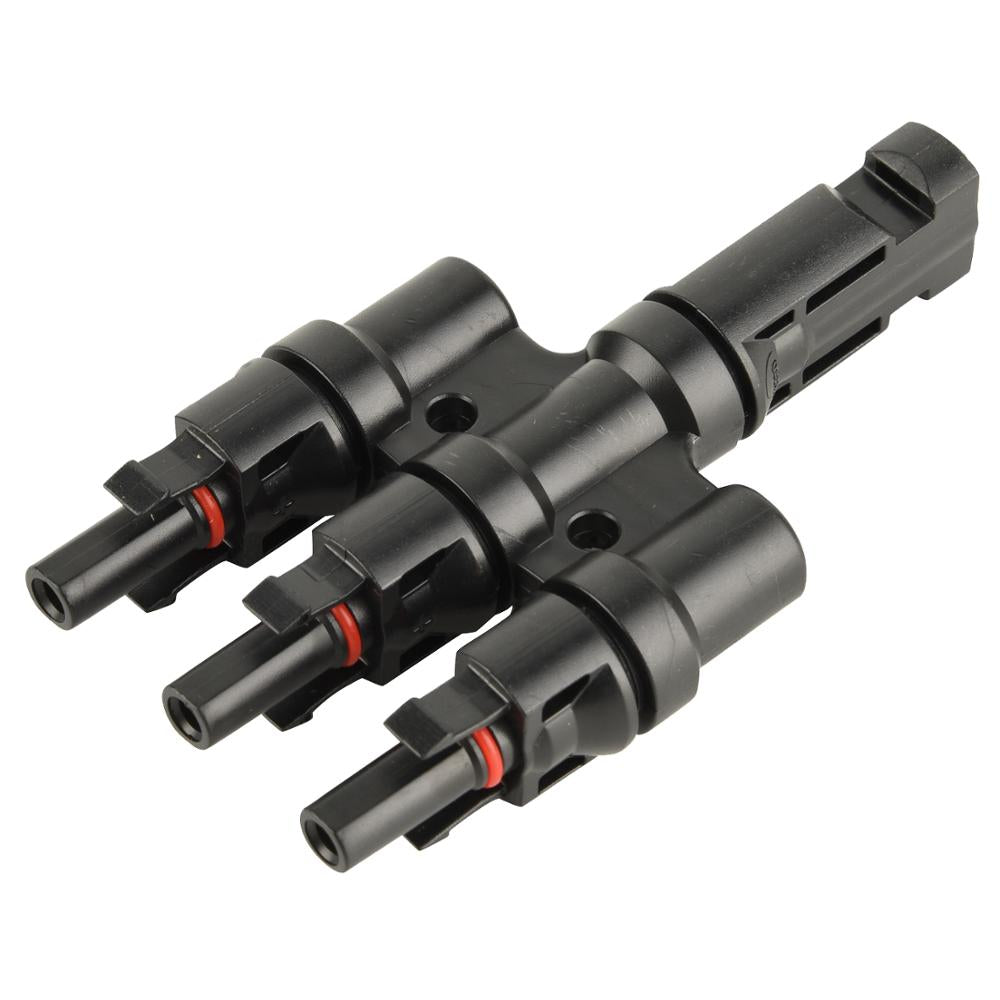

1 x T-type Branch MC4 Male Connectors (3M/1F)

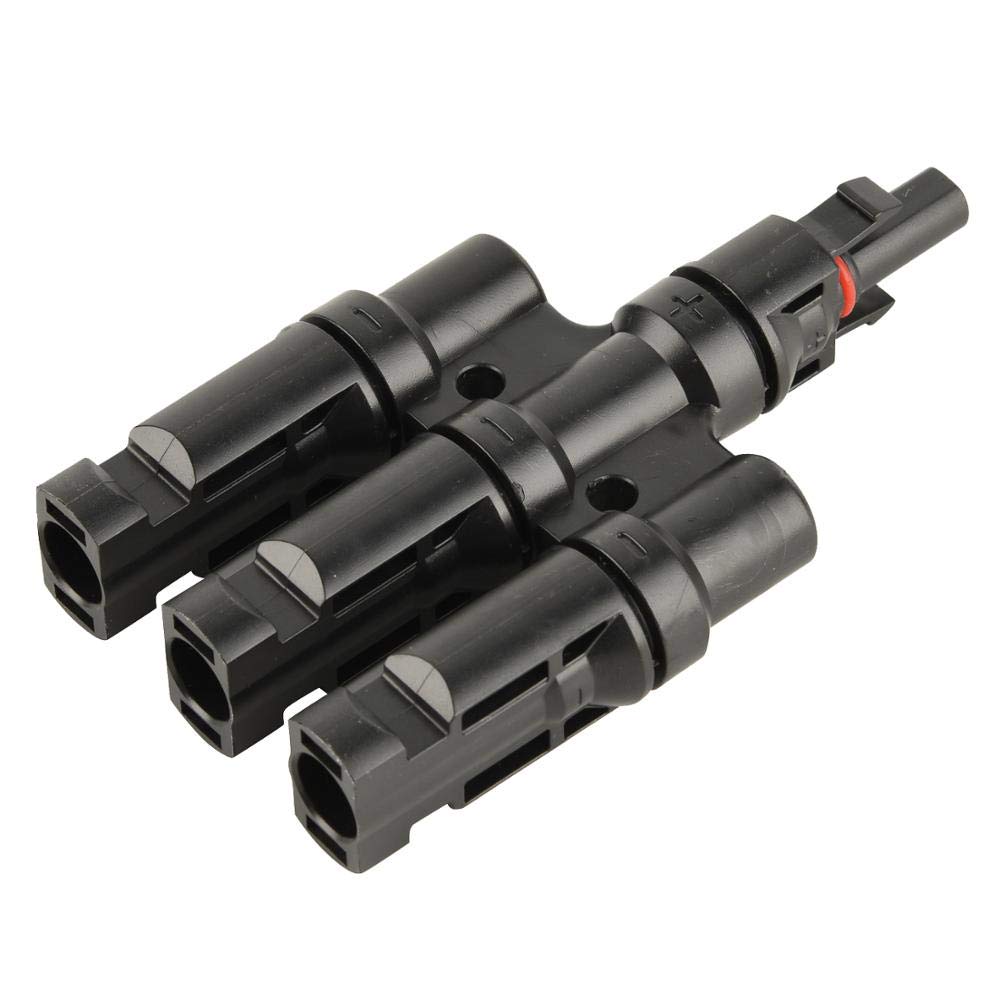

1 x T-type Branch MC4 Female Connectors (1M/3F)
