Brand: ANFIL Solar Technology
Color: Black
Details:

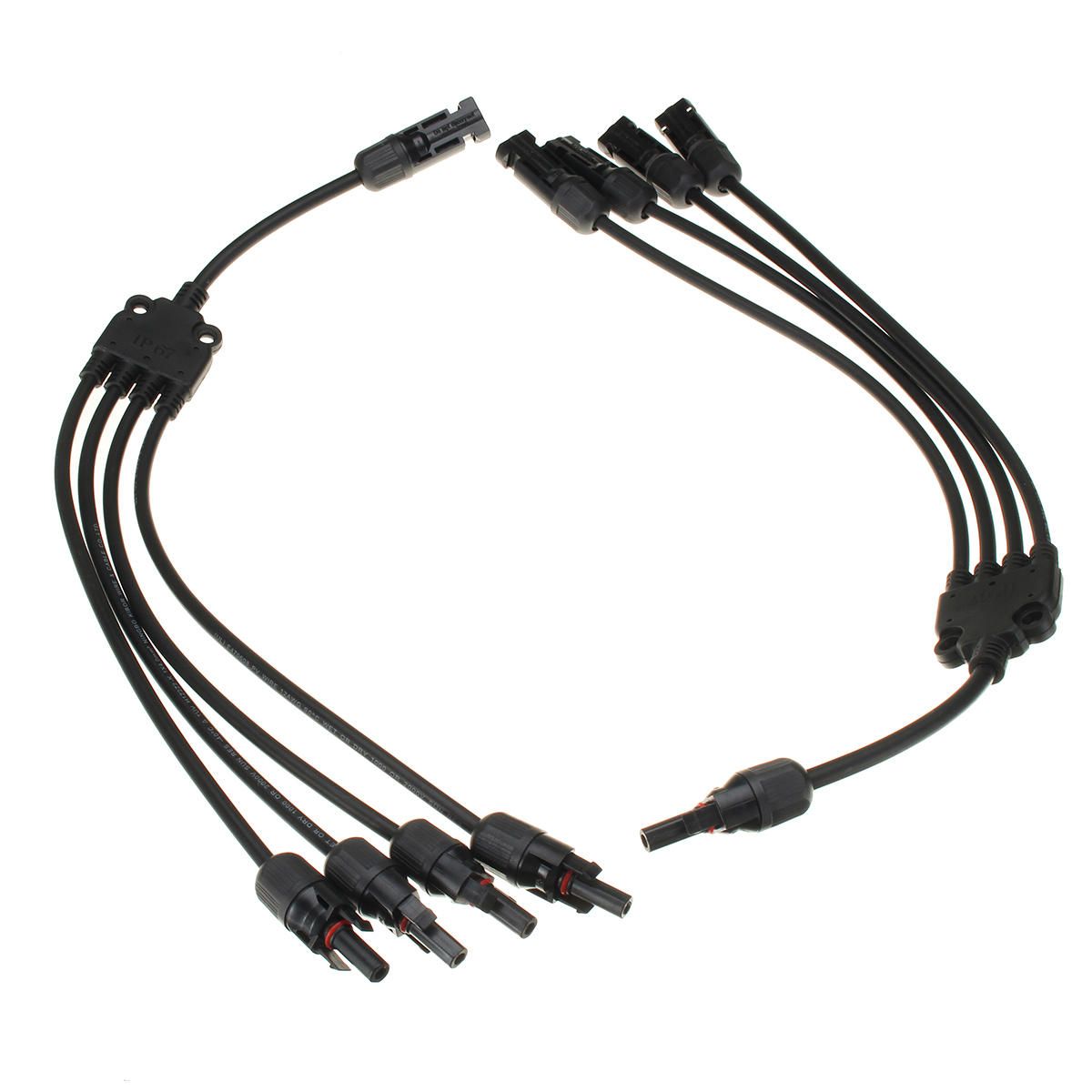

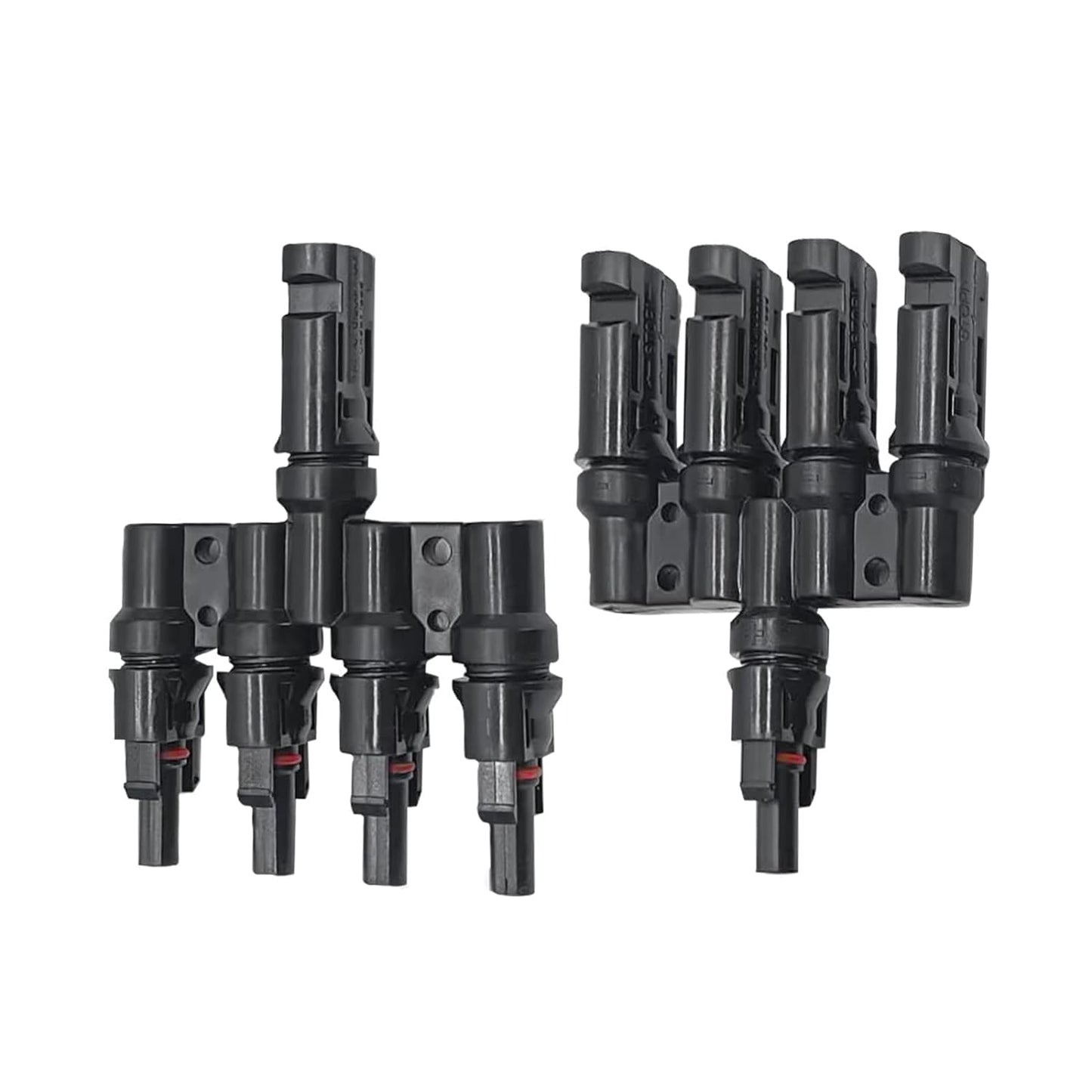

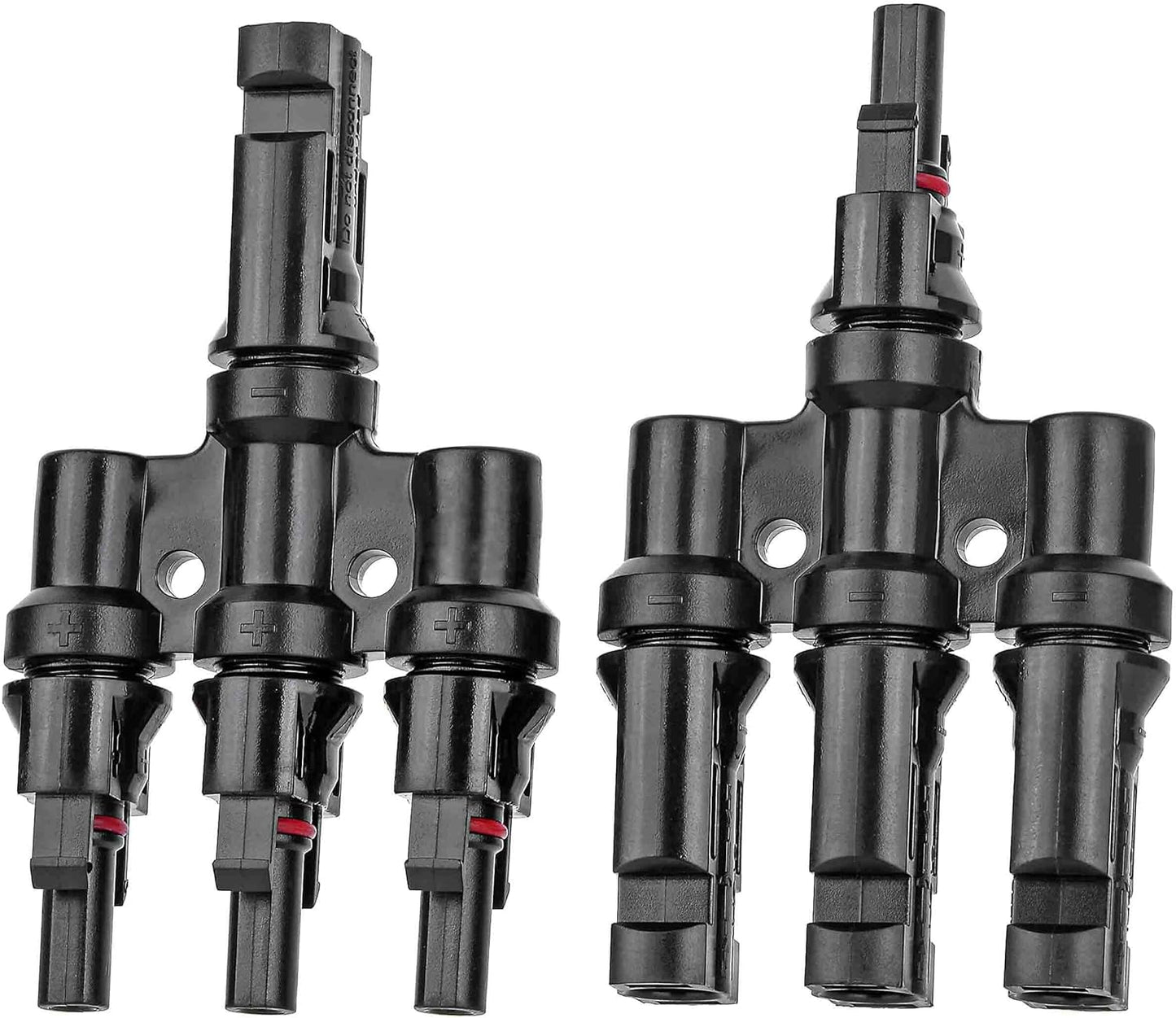

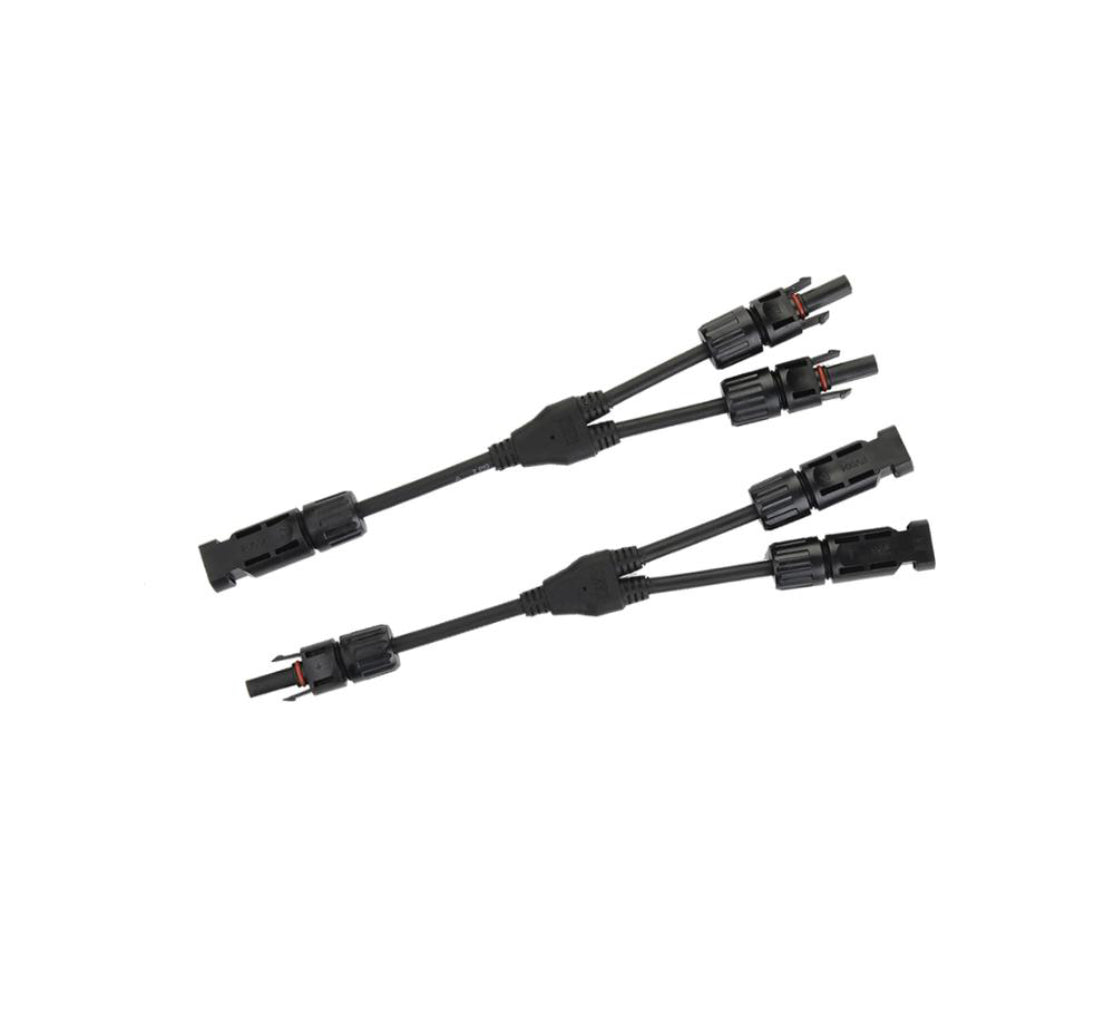

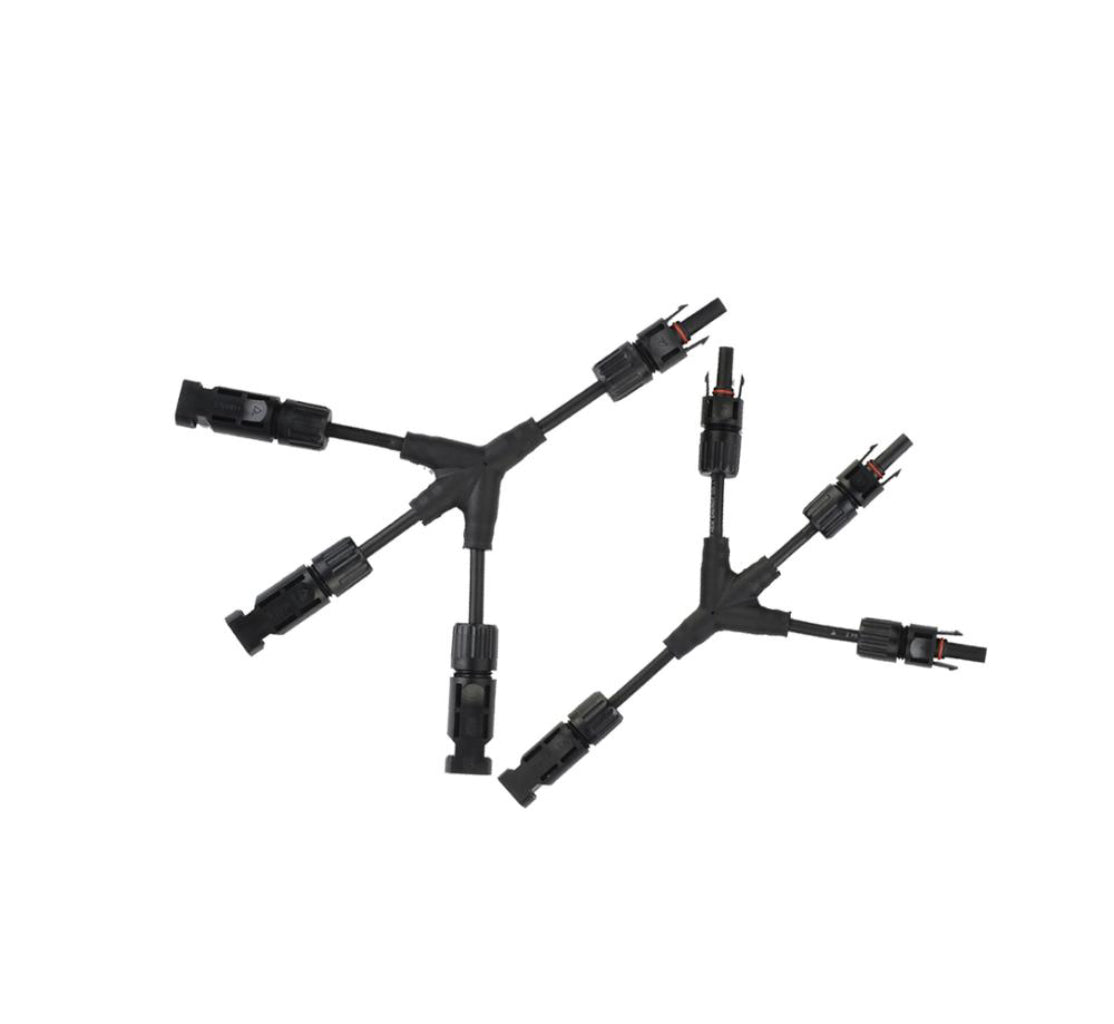

MC4 T-type Cable Connector - 1 Male to 2 Female (M/2F) and 1 Female to 2 Male (F/2M)
Features:
- MC4 T-type Cable Connectors has special design for stronger connection of male and female connectors (the possibility of spontaneous disconnection is excluded)
- The MC4 metal pins 100% use tinned copper, which provides high corrosion resistance and maximum conductivity at minimum contact resistance

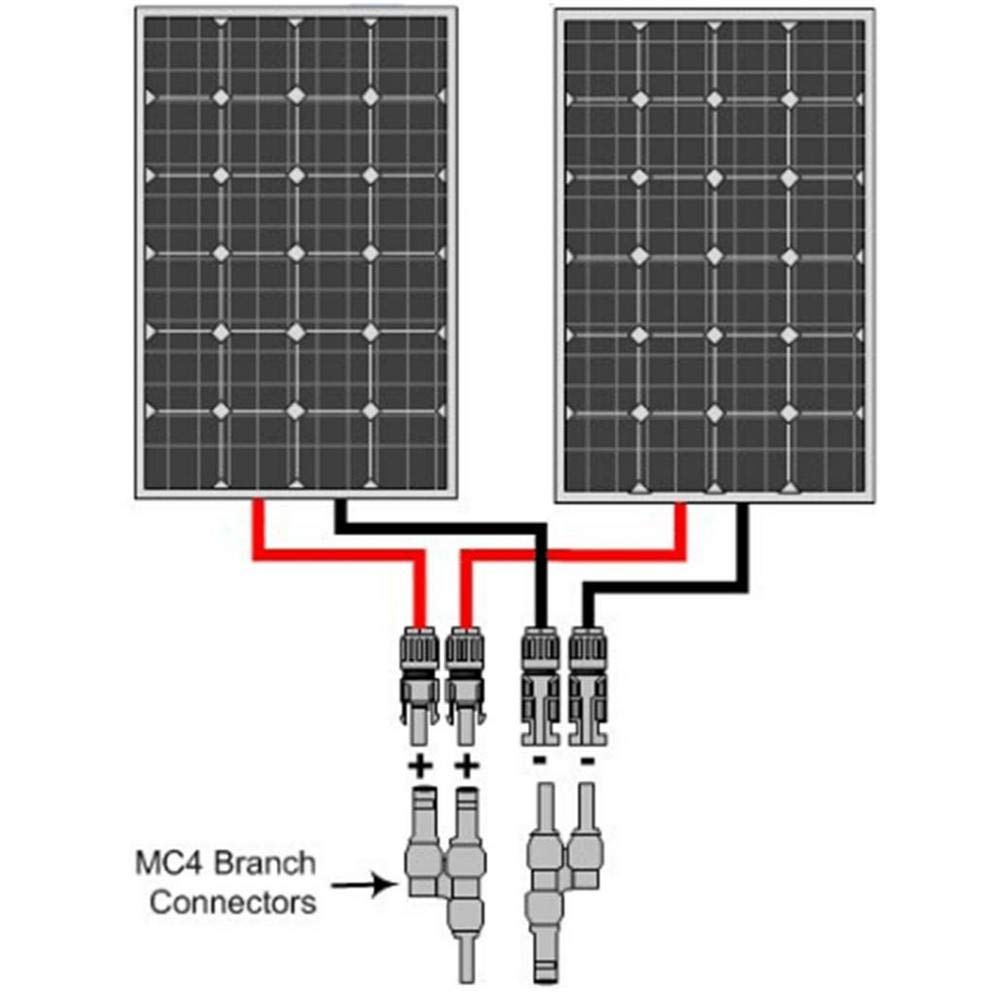

- Great solution for parallel connection of multiple panels together in a solar field
- Compatible with all MC4 solar connectors, Easy to Install, Durable, Reusable, Dustproof, IP67 Waterproof
- With excellent aging and UV resistance
- Solar Panel MC4 T-type Branch Cable Connectors can be used for at least 25 years the same as solar cell modules. The product quality guaranteed for 10 years
Specification:
Model: T-type connector 2 Female to 1 Male (2F/1M) + 1 Male to 2 Female (1M/2F)Rated Voltage: 1000V
Rated impulse voltage: 8000V
Rated insulation voltage: 6000V
Rated Current: 30A
Protection Degree: IP67
Contact Resistance: ≤0.5mΩ
Pollution Degree: 2
Ambient Temperature Range: -40~+85℃
Suitable cable: 2.5/4/6.0 mm² (AWG 14/12/10)
Contact Material: Copper, Tin Plated
Insulation Material: PPO
Flame Class: UL94-V0
Package Include:
1 x T-type Branch MC4 Male Connectors (2M/1F)1 x T-type Branch MC4 Female Connectors (1M/2F)
Dear buyers, please contact us if you have any questions about this product
